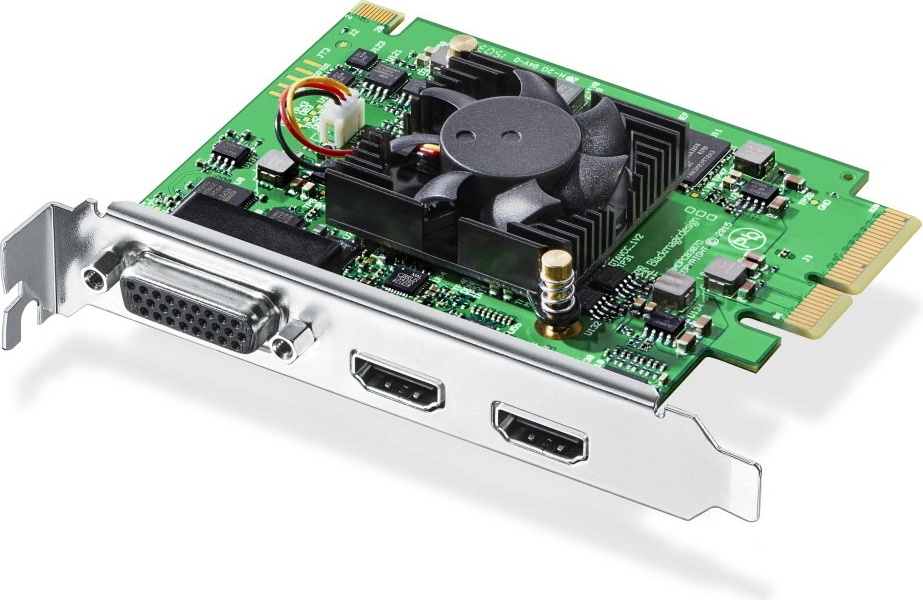

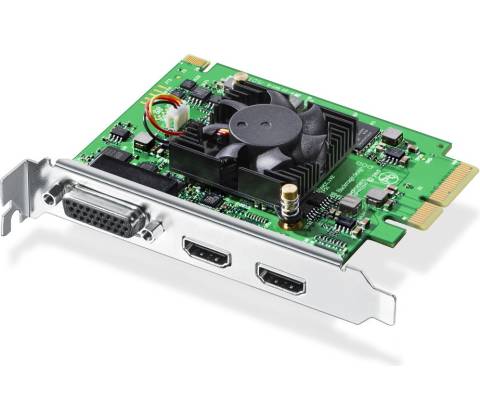

Blackmagic Design Intensity Pro 4K

Profesionálna editačná UHD HDMI Video karta 4:4:4 pre Windows alebo Mac. Intensity Pro ponúka neuveriteľnú kvalitu a rýchlosť vďaka HDMI vstupu a výstupu. Karta obsahuje najnovšiu HDMI technológiu pre najvyššiu obrazovú kvalitu pri naberaní alebo prehrávaní na Windows alebo Mac OS počítačoch. Teraz môžete mať plnohodnotný výstup na HDMI LCD monitoroch a projektoroch alebo naberať video v nekomprimovanej kvalite až do UHD rozlíšenia a to všetko za neuveriteľne nízku cenu. Intensity Pro 4K je ideálny pre editáciu až do UHD rozlíšenia pomocou veľkej obrazovky, televízora alebo videoprojektoru. Intensity Pro 4K pracuje s nekomprimovaným  ako aj s komprimovaným SD, HD alebo UHD videom!

Connections

HDMI Video Input 1 x HDMI type A connector.

HDMI Video Output 1 x HDMI type A connector.

HDMI Audio Input 8 Channels embedded in SD, HD and Ultra HD.

HDMI Audio Output 8 Channels embedded in SD, HD and Ultra HD.

Analog Video Input

Component, Composite or S-Video.

Analog Video Output

Component, Composite or S-Video.

Analog Audio Input 2 Channel RCA HiFi audio in 24-bit.

Analog Audio Output 2 Channel RCA HiFi audio in 24-bit.

SPDIF Audio Output 2 Channel 24-bit.

Multiple Rate Support

HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.

Computer Interface

PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.

Standards

SD Format Support 625i/50 PAL and 525i/59.94 NTSC, 480p

HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.

HDMI Video Sampling

RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.

HDMI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

Color Space

REC 601, REC 709.

HDMI Color Precision 10-bit

HDMI Configuration

HDMI 1.4b supports Deep Color and automatically configures to connected display.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

UHD/HD Down Conversion

Software based down conversion during video playback.

HD Up Conversion

Real time SD to 1080HD and 720HD during video capture.

Real Time Effects

Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

Software

Software Included

DaVinci Resolve Lite, Media Express, Disk Speed Test, Blackmagic Desktop Video.

Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updater software.

Operating Systems

Mac OS X 10.9 Mavericks,

Mac OS X 10.10 Yosemite or later.

Windows 7 or Windows 8.

Linux

Physical Specifications

Physical Installation

PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux. Please check the Support pages to see the full system requirements.

Environmental Specifications

Operating Temperature 5° to 40° C (32° to 104° F)

Storage Temperature -20° to 45° C (-4° to 113° F)

Relative Humidity 0% to 90% non-condensing

What's Included

Intensity Pro 4K

Software SD card.

Breakout Cable
