StarTech PEX2S1050

StarTech.com PEX2S1050, PCIe řadič RS232 serial (PEX2S1050) StarTech.com PEX2S1050, PCIe, Sériový, Plná velikost (nízký profil),

RS-232, SB16C1052PCI, 256 B

Úvodní popis

• StarTech.com PEX2S1050. Rozhraní: PCIe, Výstupní rozhraní: Sériový, PCI
• Card form factor: Plná velikost (nízký profil). Čipset: SB16C1052PCI, FIFO
• (první dovnitř, první ven): 256 B, Přenosová rychlost: 460,8 Kbit/s.
• Certifikace: CE, FCC, Microsoft WHQL. Podporované operační systémy Windows:

Windows 10 Education,Win­dows 10 Education x64,Windows

• 10 Enterprise,Win­dows 10 Enterprise… Šířka: 120 mm, Hloubka: 103 mm,
• Výška: 20 mm

Popis

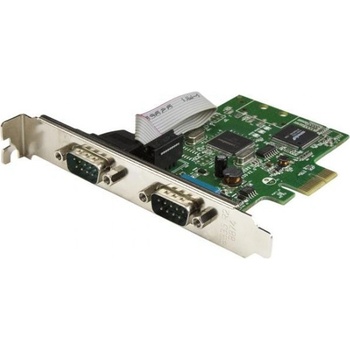

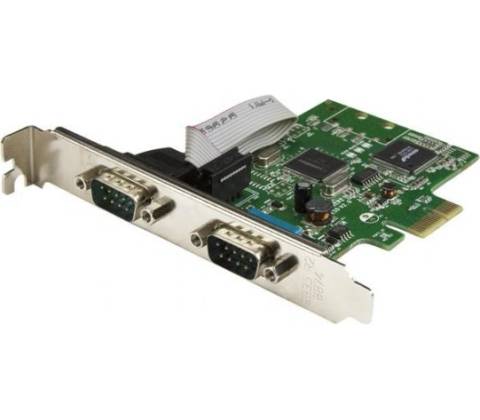

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with

PCI Express 1.0a specification, and it's compatible with 1×, 2×, 4×, 8× and 16× PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
